Specification

●DVB-T2/T set top box compliant with MPEG2 and MPEG4 and H.264 and H.265 and AVS

●Compatible with HDTV channels and equipped with HDMI connector

●EPG & DVB Teletext & DVB Subtitles

●Auto search & Blind search & network search function

●Support Media Player

●Support Dexin CAS

Core System
Processor : M88Cs8001T /M88CS8051T(High-performance dual MIPS CPU)
Broadcast tuners: 1 DVB-T2/T
Memory: 8MB Flash SOC Embedded 128MB DDR
STB up grade: Through OTA or USB Disk

Connectivity

Video: HDMI v1.4a
RCA out (CVBs, Audio L/R)

USB: 1xUSB2.0 host device

Tuner & Demodulator
-Input Frequency: 50MHz-860MHz

-Demodulator: QPSK，16QAM，64QAM，256QAM demodulation supported
-Channel bandwidth: 5M,6M，7M, 8MHz

Front panel
Display: 3 LED Indicator, Power Red LED, Lock Green LED
Button: CH+，CH-

Video Decoding
-MPEG4 Simple Profile,Advanced Simple Profile @Level 5 without GMC/Data Partitioning/Reversible VLC

-HEVC/H.265 MP@level 4.0 High tier (M88CS8051T only )

-MPEG-2 MP@HL
-AVS Jizhun profile @ L6.0/4.0/2.0

-AVS Broadcast profile @ L6.0/L4.0
H.264 BP(with noASO/FMO)，MP& HP@L4.1

Setup environment
Function temperature:0-40 degree Celsius

Power consumption: Max 10w
Voltage:12V/1A

Audio Decoding

MPEG-1/2 Layer l/II/III
MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4

Dolby AC3/AC3+(Optional)

Dimensions
W x D x H(mm):140*83*32

Weight(kg):0.55
Packaging dimension(mm): 245*165*52

Weight include packagingkg):0.6

HDISD Video Encoding
HD formats: 480p, 576p, 720p,1080i/p
SD formats: NTSC/PAL/SECAM with VBl slicer

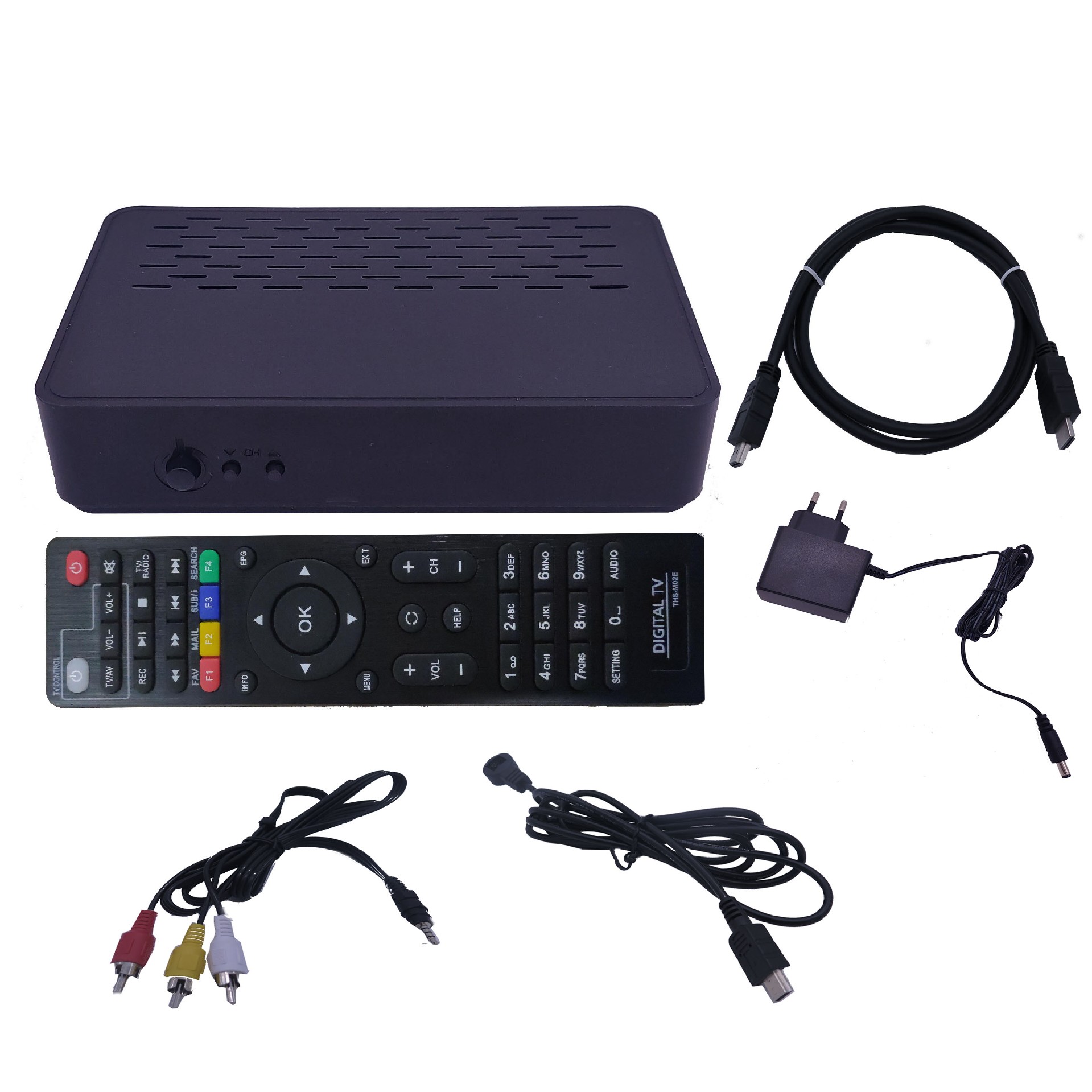

Proposed Accessories

Remote control unit
RCA Connect Cable OR AAA Batteries

AAA Size Batteries
